NEW 2023 24SUR Toy Hauler
Built to Last, Designed for Adventure

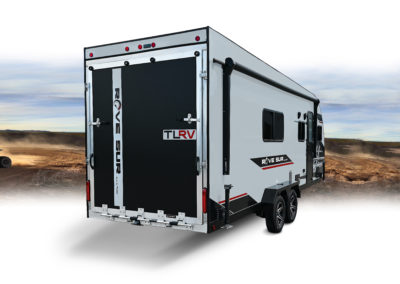

Travel Lite RV’s lightest weight toy hauler, the 24SUR boasts a 13-foot garage and is made of 100% composite material and aluminum. The 24SUR is built to last, with no wood material used anywhere, and a one-piece fiberglass roof connecting our durable Hydrolite walls. This coach is half the weight of any model in its class on the market and can be pulled behind most smaller vehicles, allowing for more adventure with less hassle.
Standard and Optional Features
- Hydro-Lite Sidewalls
- 15” Custom Lite-Wgt Alum Wheels
- Two 3,500# Axle w/Electric Brakes
- LED DOT Running Lights
- 30GL Fresh/30GL Gray/5GL Black Water Tanks On-Demand Tankless
- Water Heater Single Bowl Stainless Steel Sink High Rise Kitchen
- Faucet Shur-Flo Water Pump
- 40 AMP Converter
- Battery Disconnect Switch
- Aluminum Cabinetry
- 10.7 Cu Ft 12 Volt Refer
- 17inch 2/1 gas range/cooktop
- 20k BTU Furnace
- High Efficiency Vent Fan
- Foot Flush Toilet
- Soft shades
- 20# LP Gas Tank
- Detachable 30 AMP Power Cord
- Monitor Panel
- 320 Watt Solar Panel
- HDTV/AM/FM Ant w/Amplified Signal Wall Plate Tuson Sway Control
- Electric Tongue Jack Side Mt Stab Jacks (Front & Rear) 18′ Electric
- Side Awning AM/FM Stereo w/Outside Speakers
- 13.5 BTU AC
- Fold Down Entry Step
- Electric Drop Down Rear Bed by Happi-Jac
- Patio Kit (Including Rail)
Resources
Available Floor Plans
Weights and Measurements
Hitch Weight
Hitch Height
GVWR
UVW
Cargo Carrying Capacity
Exterior Length
Exterior Height
Exterior Width Body
Exterior Width Body w/Awning
Exterior Width w/Wheel Wells
Fresh Water
Gray Water
Black Water
Awning Size
24SUR
200
17"
7,000 lbs
3,500 lbs
3,500 lbs
26'10"
8'1"
6'6"
7'1"
7'11"
30 gal
30 gal
5 gal
110"
*All Weights Include Optional Power Awning and AC
*NO WEIGHT DISTRIBUTION HITCH or SWAY CONTROL HITCH is to be used! This will void the warranty.”
This is weighed without removable jacks and A/C.
